10 Meters Radio >
SS-399
Superstar SS-399 – 8 Watts 10 Meter Ultra-Compact Radio
The SS-399 delivers 8 watts of power in an ultra-compact design, making it an excellent choice for operators who value strong performance in limited space. It comes paired with the Ranger SRA-198NC noise-cancelling microphone, effectively reducing background noise for a clearer communication experience. The built-in echo switch function adds further versatility, making the SS-399 suitable for mobile and portable uses.
10 Meter Ultra-Compact Radio
SS-399
- Dual AM/FM Modes
- 20W PeP Output Power
- Slim & Compact Design
- Excellent Receiver Sensitivity
- Echo Function
- Clear Speaker
- Ranger SRA-198NC Chrome Noise-Cancelling Mic
- Suitable for Various Uses
Product Details
The Superstar SS-399 is a compact 10-meter AM/FM radio engineered for operators who demand reliable performance in a small form factor. With its rugged design and versatile features, the SS-399 is suitable for mobile and portable communication.
Key Features:
- AM/FM Mode – Flexible communication options
- Ranger SRA-198NC Noise Cancelling Microphone – Clearer audio with background noise reduction
- Echo On/Off Function – Adds depth and clarity to your voice
- Variable Squelch Control – Adjustable noise suppression for cleaner signals
- Variable RF Gain Control – Optimize signal strength for different conditions
- Signal/RF Power Indicator – Easy monitoring of transmit and receive performance
- Variable Volume Control – Smooth audio adjustment
- 12–24V DC Power Source – Wide power compatibility for different vehicles
- External Speaker Jack – Connect an external speaker for enhanced audio
Performance Highlights:
- Compact and slim design for easy installation
- Clear, loud audio with echo function
- Stable and efficient operation with wide voltage support
- Perfect balance of power, portability, and clarity for everyday use
Features
Key Features:
- Dual AM/FM Modes – Flexible communication options
- 20W PeP Output Power – Strong transmit performance
- Slim & Compact Design – Easy to mount in tight spaces
- Excellent Receiver Sensitivity – Clear signal reception
- Echo Function – Adds depth and clarity to your voice
- Clear Speaker – Loud, distortion-free audio
- Ranger SRA-198NC Chrome Noise-Cancelling Mic – Reduces background noise
- New Final MOSFETs with Large Heatsink – Reliable performance and cooling
- Suitable for Various Uses – Ideal for mobile and portable operation
Features :
- AM/FM Mode
- SRA-198NC Noise Cancelling Microphone
- Echo On/OFF Function
- Variable SQ Control
- Variable RF gain Control
- Signal/RF Power Indicator
- Variable Volume Control
- 12-24V Power Source
- External Speaker Jack
Specification
General:
|
Model: SS-399 |
Frequency Range: 28.0000-29.5950MHz |
Emission: AM,FM |
|
Frequency Control: Phase-Lock-Loop Synthesizer |
Frequency Stability: 0.001% |
|
|
Operating Temperature Range: 25°C |
Antenna Impedance: 50 ohm |
Microphone: Plug-In dynamic; with push-to-talk switch and coiled cord |
|
Input Voltage: 12 V DC & 24Vdc |
Dimensions: 180(L) x 120(W) x 40(H) mm |
|
|
Weight: 0.8kg |
||
Transmitter:
|
RF Power Output: AM : 8W RMS, 25.0W pep, FM : 8W |
RF Transmit Modes: AM, FM |
|||||||
|
Antenna Connector: Standard SQ-239 type |
Spurious Emissions: > -55 dB |
|||||||
|
Audio Distortion : <10% |
Frequency Response : 300 - 2500Hz |
Microphone : Dynamic |
||||||
Receiver:
|
Sensitivity: AM: 0.5 μV for 12dB |
Sensitivity FM : 0.35μV for 20dB |
Image Rejection Ratio: > 50 dB |
||||||
|
Audio Power: Output 3W @ 10% Distortion |
Squelch Sensitivity ： <0.5uV |
Audio Response : 300 to 2500Hz |
||||||
Specification
| GENERAL: | ||
| Model | RCI-99N1 | |
| Frequency Range | 28.315-29.665MHz | |
| Emission | USB, LSB, AM | |
| Frequency Control | Phase-Lock-Loop Synthesizer | |
| Frequency Tolerance | 0.005% | |
| Frequency Stability | 0.001% | |
| Operating Temperature Range | -20OC to +50OC | |
| Antenna Impedance | 50 ohm | |
| Microphone | Plug-In dynamic; with push-to-talk switch and coiled cord | |
| Meter Function | RF Output, RX Receive Signal Strength, SWR,AM Modulation | |
| Input Voltage | 13.8 V DC | |
| Dimensions | 7 7/8″ (W) x 9 1/4″ (D) x 2 3/8″ (H) | |
| Weight | 5 lb. | |
TRANSMITTER: | ||
| RF Power Output | AM: 5W/25W RMS AM/SSB: 30W/100W PEAK POWER | |
| RF Transmit Modes | USB, LSB, AM, | |
| Antenna Connector | UHF Type, 50 W | |
| Modulation | A3E, J3E, | |
| Spurious Emissions | > -50 dB | |
| Carrier Suppression | -50 dB | |
RECEIVER: | ||
| Sensitivity | AM: 0.5 μV for 10dB Sinad SSB: 0.25μV for 12dB Sinad | |
| Image Rejection Ratio | > 50 dB | |
| Audio Power Output | 2.5W | |
Supplied Accessories
- SRA-198NC noise cancelling microphone

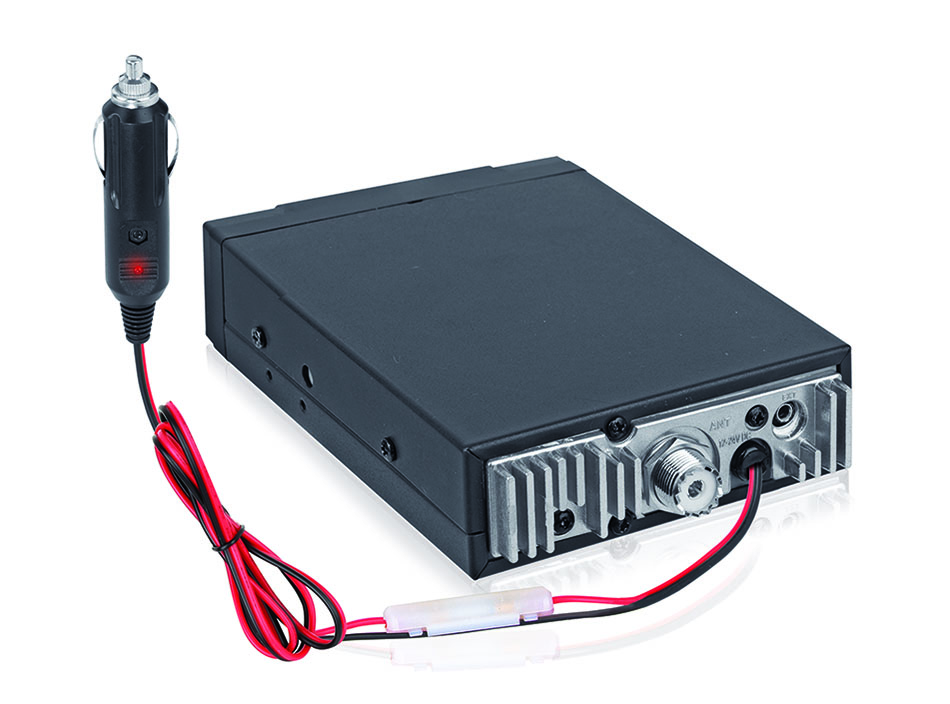

- Fused DC cord provided, compatible with standard vehicle power sockets
- Mounting bracket with hardware
- Microphone hanger with hardware

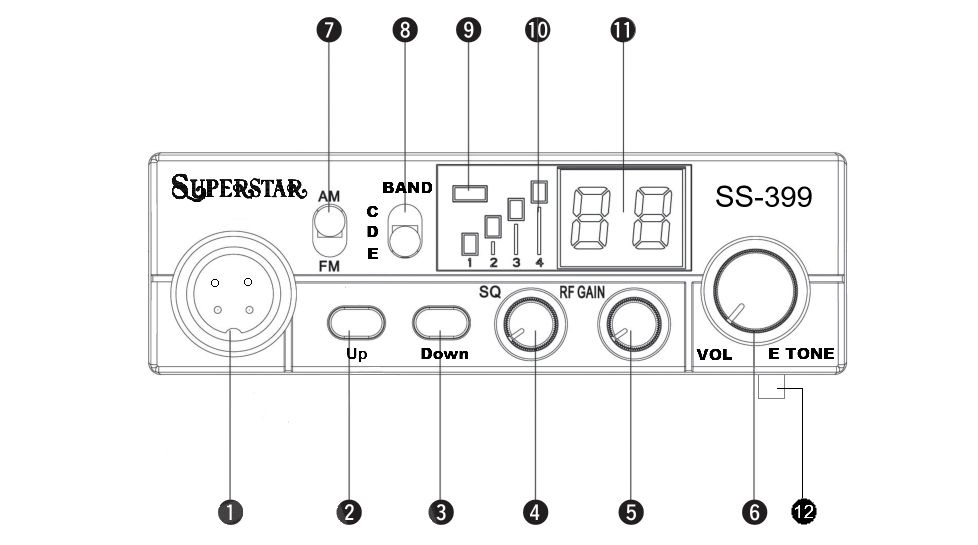

Controls and Indicators
|
1. MICROPHONE |
2. Up Button |
3. Down Button |
4. SQUELCH CONTROL |
5. RF GAIN CONTROL |
|
6. ON/OFF Volume CONTROL |
7. AM/FM Mode Selector |
8. Band Selector |
9. TX LED |
10. TX/RX Signal Meter |
|
11. Channel Display |
12. Echo ON/OFF Switch |
|

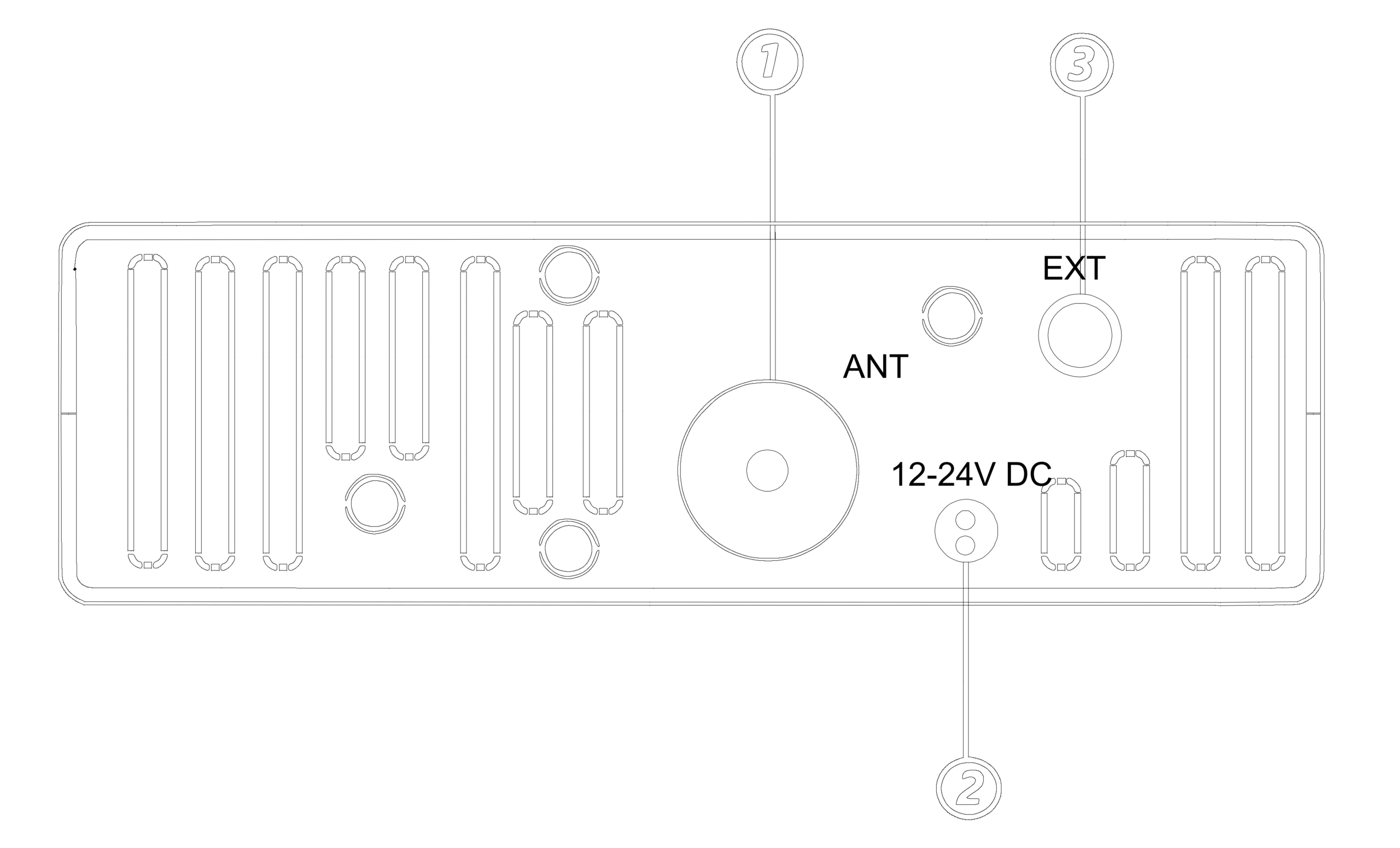

1. Antenna |
2. DC Power |
3. EXTERNAL SPEAKER |
Controls and Indicators
| 1. MICROPHONE | 2. SQUELCH |
| 3. ON/OFF VOLUME | 4. RF GAIN |
| 5. MIC GAIN | 6. ECHO/TIME CONTROL |
| 7. DIM | 8. TALKBACK/OFF CONTROL |
| 9. PWR | 10. FINE |
| 11. CHANNEL SELECTOR | 12. FRONT PANEL METER |
| 13. SWR/MOD/POWER | 14. BAND SELECTOR |
| 15. BAND SWITCH | 16. NB/ANL/RADIO/PA |
| 17. FREQUENCY COUNTER | 18.MODE SWITCH |
| 19. SWR LED | 20. RX/TX LED |
| 21. COLOUR SWITCH | 22. CHANNEL INDICATOR |
| 23. HI/LO POWER |
| 1. POWER | 2. ANTENNA |
| 3. EXTERNAL SPEAKER | 4. PA SP |
