10 Meter Radio Transceiver >
SS-99VHP
Ranger SS-99VHP 10 Meter Amateur Radio, 200W AM SSB Cool-Lock Mobile Radio

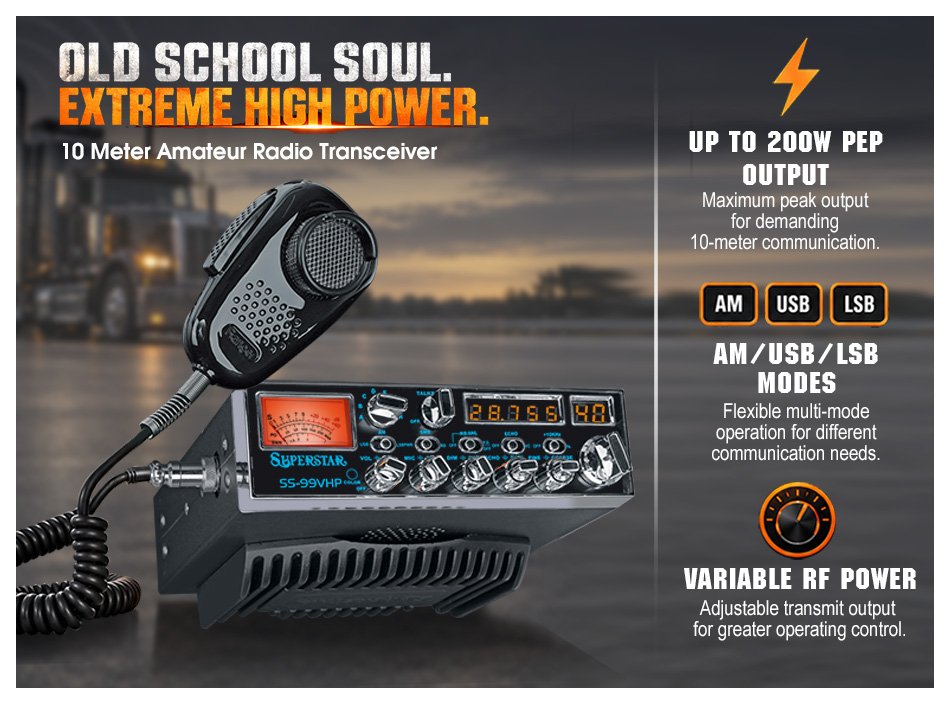

- 200W High-Power Output: Engineered with 200W PEP in both AM and SSB modes. Provides maximum RF penetration and signal clarity for long-distance skip communication and reliable mobile reception.
- SRA-198NC Noise-Canceling Mic: Comes standard with the SRA-198NC microphone. Active noise-isolation filters out heavy cab white noise and engine hum, ensuring loud, punchy, and clear audio transmission.

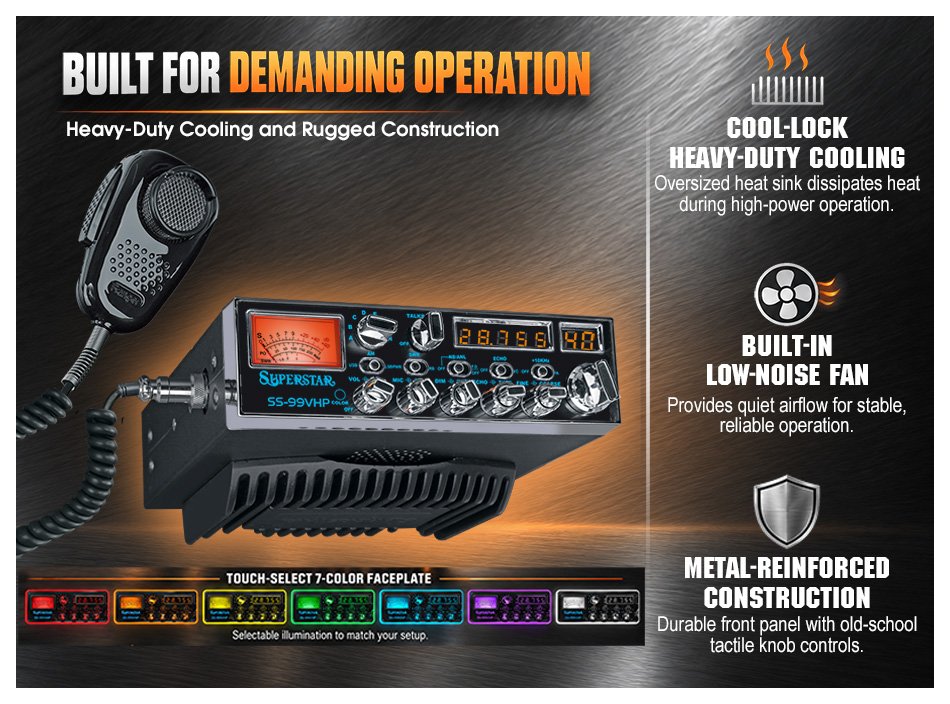

- Cool-Lock Thermal Control: Built with an oversized, heavy-duty rear Cool-Lock heat sink and an integrated silent cooling fan to handle thermal load during high-duty-cycle, 200W transmissions.
- Tactile Field Adjustments: Combines an old-school chassis layout with modern features. Features independent mechanical knobs for blind-touch adjustments of Volume, Squelch, Echo, Time, and Talkback without entering digital sub-menus.

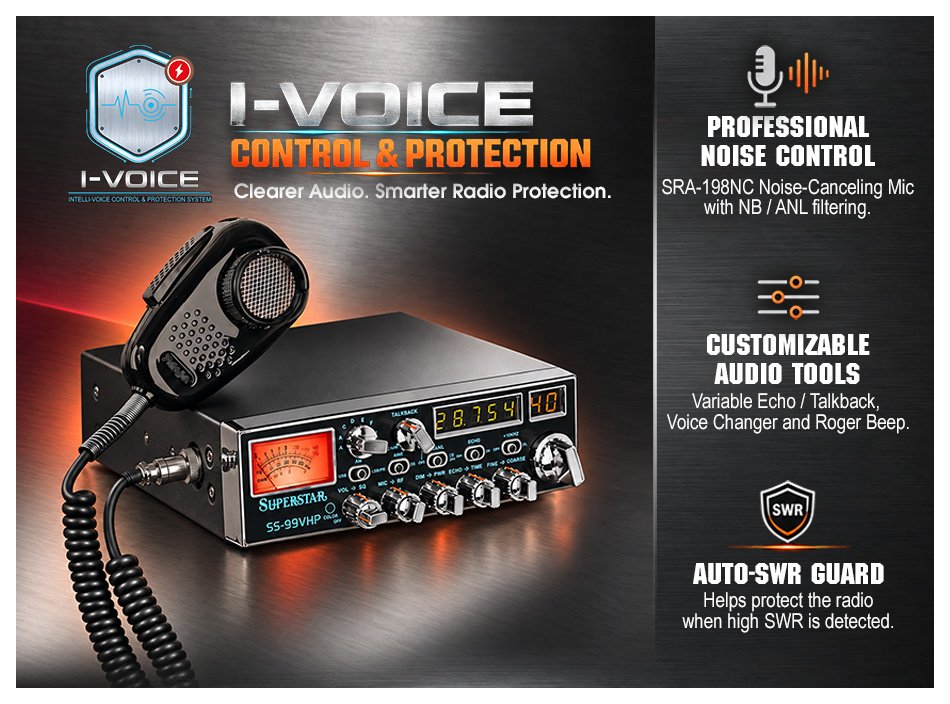

- Voice Changer & Auto-SWR: Equipped with an internal Voice Changer (VC), +10KHz switch, Roger Beep (RB), NB/ANL noise filters, and an Auto-SWR monitoring system with an alert LED to protect output transistors from antenna mismatch.
10 Meter Radio Transceiver >
SS-99VHP
- 200W PEP AM/SSB Output
- SRA-198NC Noise Canceling Microphone
- Built-in SWR Bridge
- SWR Alert LED
- Large S-Meter/Power/SWR Meter
- Old School Tactile
- Cool Lock - Heavy-Duty Cooling System
- Voice Changer
- Superior Signal Reception
- 7-color Touch Select Faceplate
Product Details
The Ranger SS-99VHP is a high-power 10-meter amateur mobile transceiver built for radio operators and long-haul drivers demanding raw performance and intuitive control. Delivering 200W PEP on AM and SSB, this unit punch through long distances effortlessly. Thermal management is driven by a heavy-duty Cool-Lock rear chassis paired with a built-in silent cooling fan, ensuring long-term hardware stability under intense transmission cycles.
Designed around classic tactile ergonomics, the SS-99VHP replaces complex digital menus with heavy-duty mechanical knobs for Volume, Squelch, Echo, and Talkback adjustments. The front panel features a 7-color touch-selectable background lighting system paired with a classic orange LED channel and frequency readout, alongside an oversized 4-function analog meter. Advanced features include an integrated Voice Changer (VC), +10KHz frequency shift, NB/ANL noise limiters, and an Auto-SWR monitoring system backed by a red warning LED to prevent output transistor failure caused by high SWR. The package includes the premium SRA-198NC noise-canceling microphone for uncompromised audio isolation.

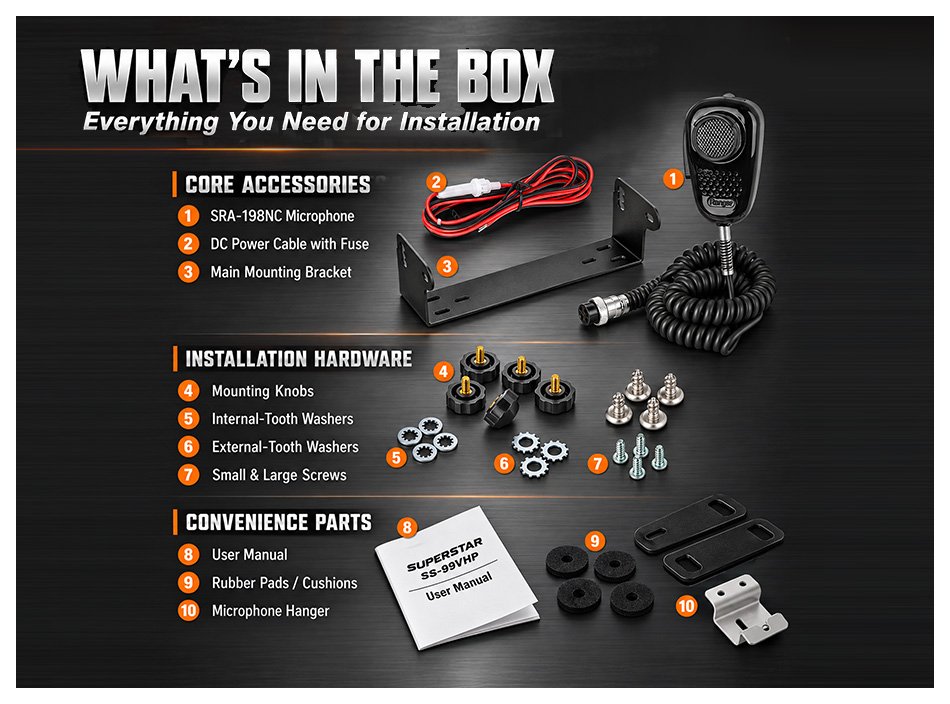

What’s in the Box
- 1 x Ranger SS-99VHP 10-Meter Amateur Transceiver
- 1 x SRA-198NC Noise-Canceling Microphone
- 1 x Heavy-Duty Mobile Mounting Bracket & Hardware Kit
- 1 x High-Current Fused DC Power Cable
- 1 x Microphone Hanger Clip & Mounting Screws
- 1 x User Manual
Specification
General:
|
Model: TRE-936FFB |
Channels: 40 |
Frequency Range: 26.965 ~ 27.405 MHz |
|
Emission: AM |
Frequency Control: Phase-Lock-loop (PLL) Synthesizer |
Frequency Stability: 0.00% |
|
Temperature Range: -30°C to +50°C |
Antenna Impedance: 50 Ohms |
Input Voltage: 13.8V DC |
|
Weight: 4.2 lbs |
Size: 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
|
Transmitter:
|
RF Power Output: 4W |
Spurious Emission: -60 dB |
Audio Distortion: 10% |
Microphone: Dynamic |
|
Frequency Response: 300 to 2500 Hz |
|||
Receiver:
|
Sensitivity for 10 dB (S+N)/N: < 1.0 uV |
Squelch Sensitivity: < 0.5 uV |
Image Rejection: More than 65 dB |
|
Audio Response: 300 to 2500 Hz |
Audio Power Output: 3W @ 10% Distortion |
AGC Figure of Merit: 100 mV for 10dB Change in Audio Output |
Specification
| General: | |
| Model | TRE-936FFB |
| Channels | 40 |
| Frequency Range | 26.965 ~ 27.405 MHz |
| Emission | AM |
| Frequency Control | Phase-Lock-loop (PLL) Synthesizer |
| Frequency Stability | 0.00% |
| Temperature Range | -30°C to +50°C |
| Antenna Impedance | 50 Ohms |
| Antenna Connectors | Standard SO-239 type |
| Input Voltage | 13.8V DC |
| Size | 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
| Weight | 4.2 lbs. |
TRANSMITTER: | |
| RF Power Output | 4W |
| Spurious Emission | -60 dB |
| Audio Distortion | 10% |
| Frequency Response | 300 to 2500 Hz |
| Microphone | Dynamic |
RECEIVER: | |
| Sensitivity for 10 dB (S+N)/N | < 1.0 uV |
| Squelch Sensitivity | < 0.5 uV |
| Image Rejection | More than 65 dB |
| AGC Figure of Merit | 100 mV for 10dB Change in Audio Output |
| Audio Power Output | 3W @ 10% Distortion |
| Audio Response | 300 to 2500 Hz |

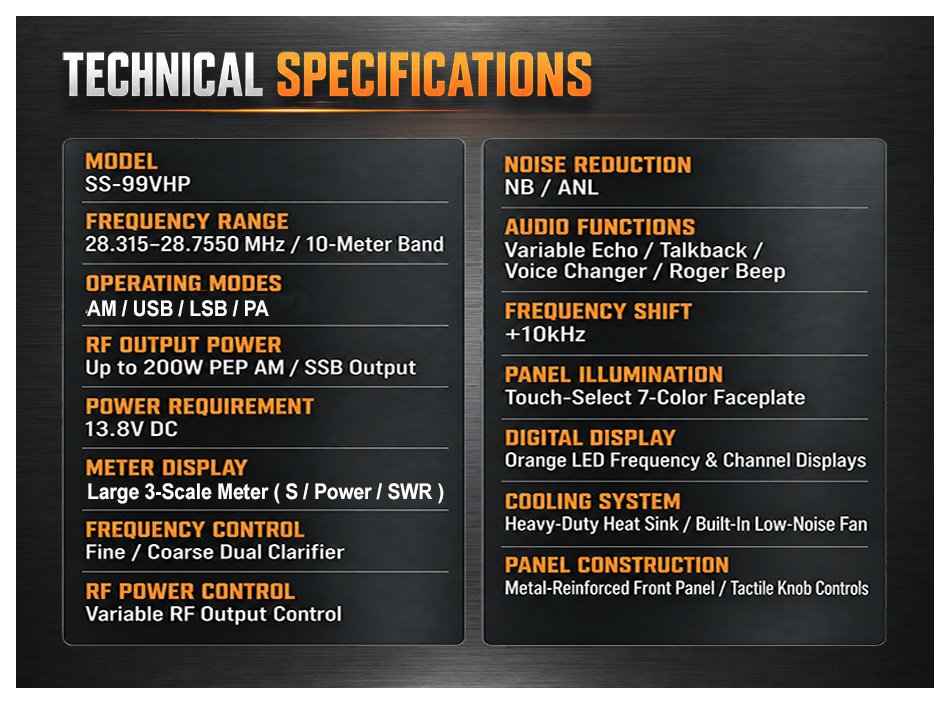

Technical Specifications
Parameter / Feature | Specifications |
Frequency Range | 10 Meter Amateur Band (28.315 – 28.755 MHz ) |
Power Output | 200 Watts PEP AM / SSB |
Modulation Modes | AM / SSB / PA (Public Address) |
Cooling System | Cool-Lock Heavy Duty Heatsink – Build In Silent Cooling Fan |
Meter Display | Large 3-Scale Meter (S/Power/SWR) |

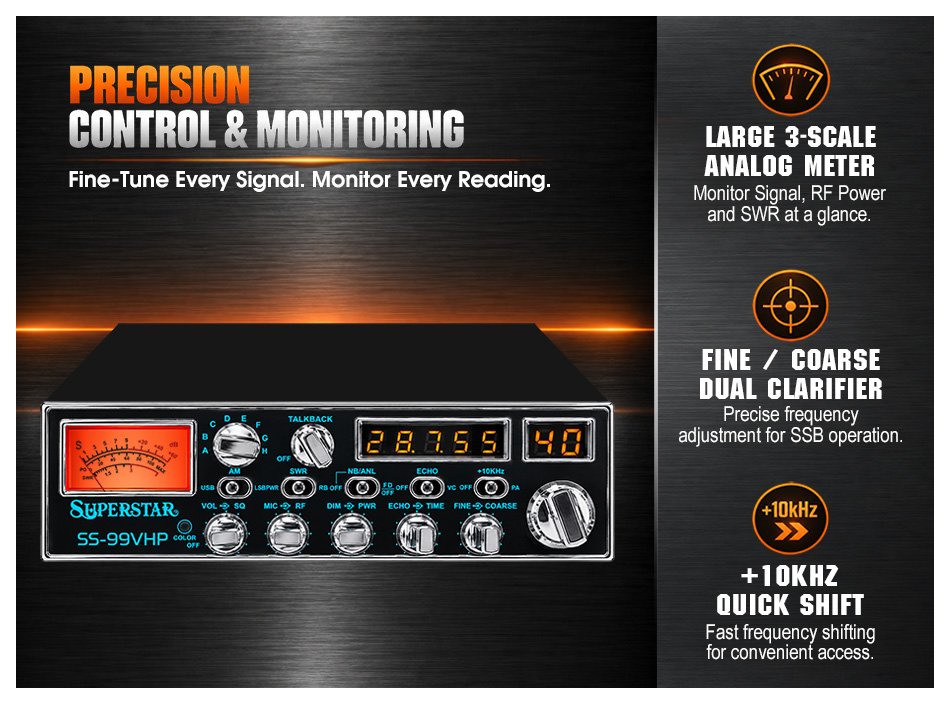

Clarifier | Fine/Coarse Dual Clarifier |
RF Power Control | Variable RF Power Control |
Noise Reduction | Switchable NB / ANL (Noise Blanker / Automatic Noise Limiter) |
Audio Functions | Echo(Variable), Talkback(Variable), VC Voice Changer, RB Roger Beep |
Display | 7-Color Touch Select Faceplate |
Frequency Tools | +10KHz |
Panel Construction | Metal-Reinforced Front Panel, Old School Tactile Knob Design |
|
1. MICROPHONE JACK |
2. MIC GAIN CONTROL |
3. ON/OFF VOLUME CONTROL |
4. SQUELCH CONTROL |
5. RF GAIN CONTROL |
|
6. SWR CAL CONTROL |
7. S-RF/CAL/SWR SWITCH |
8. TALKBACK CONTROL |
9. CHANNEL SELECTOR |
10. FRONT PANEL METER |
|
11. TX/RX LED |
12. FREQUENCY COUNTER |
13. DIM/BRT SWITCH |
14. COUNTER OFF |
15. PA/CB SWITCH |
|
16. NB/ANL SWITCH |
17. ROGER BEEP SWITCH |
18. CH19/NORMAL SWITCH |
19. CHANNEL DISPLAY |
|
1. ANTENNA |
2. DC POWER |
3. PA SP |
4. EXT. SP |
Controls and Indicators
| 1. MICROPHONE JACK | 2. MIC GAIN CONTROL |
| 3. ON/OFF VOLUME CONTROL | 4. SQUELCH CONTROL |
| 5. RF GAIN CONTROL | 6. SWR CAL CONTROL |
| 7. S-RF/CAL/SWR SWITCH | 8. TALKBACK CONTROL |
| 9. CHANNEL SELECTOR | 10. FRONT PANEL METER |
| 11. TX/RX LED | 12. FREQUENCY COUNTER |
| 13. DIM/BRT SWITCH | 14. COUNTER OFF |
| 15. PA/CB SWITCH | 16. NB/ANL SWITCH |
| 17. ROGER BEEP SWITCH | 18. CH19/NORMAL SWITCH |
| 19. CHANNEL DISPLAY |
| 1. ANTENNA | 2. DC POWER |
| 3. PA SP | 4. EXT. SP |
