TRE-2627
AM/SSB Modes, 120V AC/13.8V DC Dual Power, 6-Digit Frequency Counter, Auto SWR Calibration, GNF Noise Filters, Talkback.
[AM/SSB Multi-Mode Performance] Features AM and Single Sideband (USB/LSB) modes for extended-range communication. SSB provides superior signal clarity and efficiency for critical emergency and hobbyist base operations.
[AC/DC Dual Power Flexibility] Engineered for versatile deployment. Includes a built-in switching power supply compatible with 120V AC home outlets or 13.8V DC mobile sources. Includes both power cords.
[Precision Instrumentation & Auto SWR] Equipped with a large multi-functional analog meter and a 6-digit frequency counter. Integrated Automatic SWR Circuit with LED alert ensures real-time antenna system protection without manual calibration.
[Tactile Analog Control Suite] Professional-grade tactile knobs and switches provide instant access to Variable Talkback, RF Power, and Roger Beep. Eliminates complex digital menus for precise, instinctive operational control.
[Advanced Audio Signal Processing] Features Noise Filter (GNF), NB/ANL circuitry, and Variable Tone Control to isolate weak signals and minimize atmospheric interference for professional-grade reception.
CB Radio >
TRE-2627
- AM/SSB Operation
- Advance Noise Filters
- Automatic SWR Calibration
- SWR Alert LED
- Large S-Meter/Modulation/Power/SWR Meter
- Build In Talkback
- Roger Beep Feature
- AC/DC Dual Power
- Superior Signal Reception
Product Details

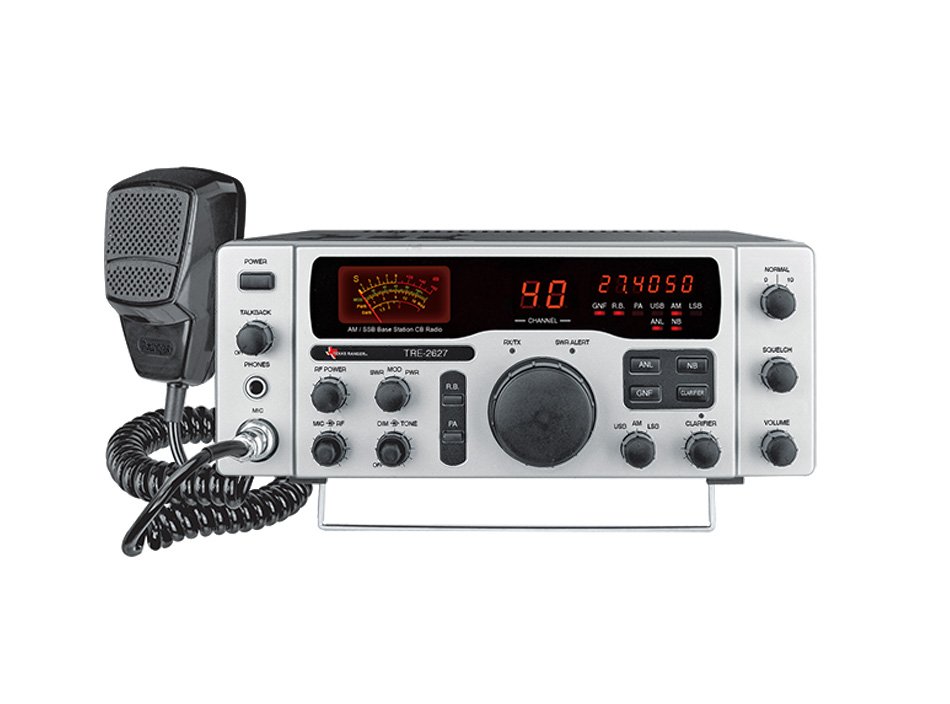

Texas Ranger TRE-2627: Professional CB Base Station Transceiver
The Texas Ranger TRE-2627 is a precision-engineered CB base station designed for operators who prioritize stability, power, and intuitive control. Housed in a durable chassis with a compact footprint, this transceiver is optimized for both permanent home installations and high-performance mobile deployments.
Dual-Power Versatility
Built for seamless integration into any environment, the TRE-2627 features a dual-voltage power system. The internal switching power supply allows for direct 120V AC home use or 13.8V DC operation, providing reliable communication during standard operations or emergency scenarios.
Precision Frequency Management
Operating on SSB requires exacting frequency accuracy. The TRE-2627 ensures peak performance with a high-visibility 6-digit frequency counter and a dedicated Clarifier circuit. The large analog meter provides real-time monitoring of RF Output, Modulation, and Signal Strength.
Integrated System Protection
The TRE-2627 is equipped with an Automatic SWR (Standing Wave Ratio) Calibration circuit. This safety system continuously monitors antenna health and activates a dedicated LED warning light if an impedance mismatch is detected, safeguarding internal components from damage.
Enhanced Signal Clarity
Designed to pull weak signals out of the static, the integrated audio suite includes Noise Filter (GNF), Noise Blanker (NB), and Automatic Noise Limiter (ANL). Combined with Variable Talkback and Tone Control, the TRE-2627 delivers unmatched audio fidelity for professional-grade communication.

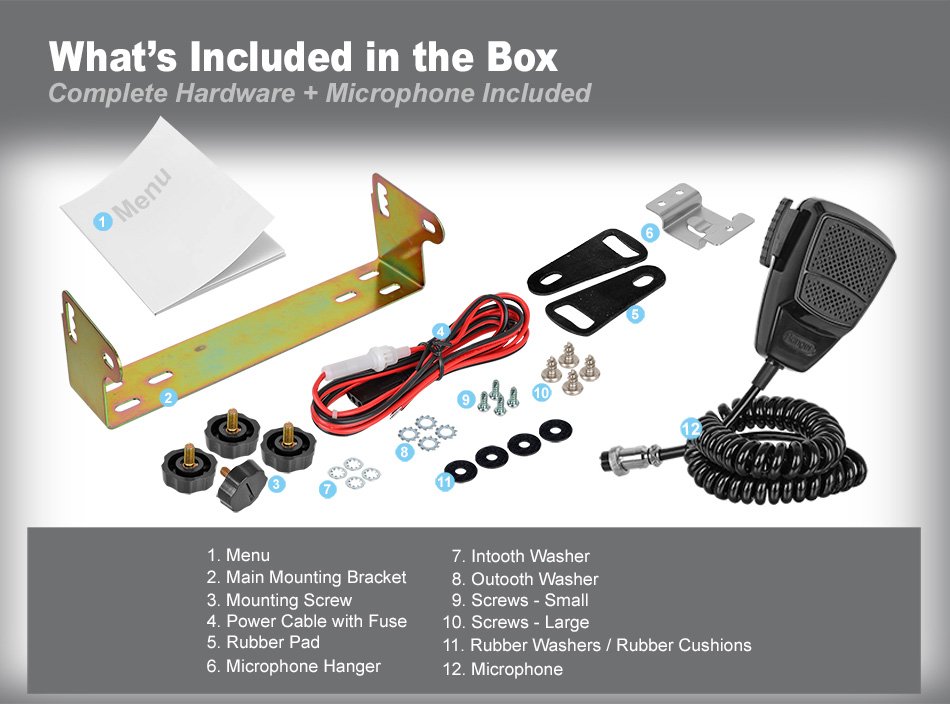

What’s in the Box:
- TRE-2627 Base Station Radio
- Handheld Dynamic Microphone
- AC Power Cord & DC Power Cord
- Mounting Hardware & Operator’s Manual
Specification
General:
|
Model: TRE-936FFB |
Channels: 40 |
Frequency Range: 26.965 ~ 27.405 MHz |
|
Emission: AM |
Frequency Control: Phase-Lock-loop (PLL) Synthesizer |
Frequency Stability: 0.00% |
|
Temperature Range: -30°C to +50°C |
Antenna Impedance: 50 Ohms |
Input Voltage: 13.8V DC |
|
Weight: 4.2 lbs |
Size: 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
|
Transmitter:
|
RF Power Output: 4W |
Spurious Emission: -60 dB |
Audio Distortion: 10% |
Microphone: Dynamic |
|
Frequency Response: 300 to 2500 Hz |
|||
Receiver:
|
Sensitivity for 10 dB (S+N)/N: < 1.0 uV |
Squelch Sensitivity: < 0.5 uV |
Image Rejection: More than 65 dB |
|
Audio Response: 300 to 2500 Hz |
Audio Power Output: 3W @ 10% Distortion |
AGC Figure of Merit: 100 mV for 10dB Change in Audio Output |
Specification
| General: | |
| Model | TRE-936FFB |
| Channels | 40 |
| Frequency Range | 26.965 ~ 27.405 MHz |
| Emission | AM |
| Frequency Control | Phase-Lock-loop (PLL) Synthesizer |
| Frequency Stability | 0.00% |
| Temperature Range | -30°C to +50°C |
| Antenna Impedance | 50 Ohms |
| Antenna Connectors | Standard SO-239 type |
| Input Voltage | 13.8V DC |
| Size | 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
| Weight | 4.2 lbs. |
TRANSMITTER: | |
| RF Power Output | 4W |
| Spurious Emission | -60 dB |
| Audio Distortion | 10% |
| Frequency Response | 300 to 2500 Hz |
| Microphone | Dynamic |
RECEIVER: | |
| Sensitivity for 10 dB (S+N)/N | < 1.0 uV |
| Squelch Sensitivity | < 0.5 uV |
| Image Rejection | More than 65 dB |
| AGC Figure of Merit | 100 mV for 10dB Change in Audio Output |
| Audio Power Output | 3W @ 10% Distortion |
| Audio Response | 300 to 2500 Hz |
Technical Specifications
Feature | Specification |
Modes | AM / SSB (USB/LSB) / PA |
Channels | 40 |
Power Output | 4W (AM) / 12W PEP (SSB) |
Power Supply | AC 120V / DC 13.8V (Internal Switching) |
Frequency Display | 6-Digit Counter + LED Channel Display |
Audio Filters | NB, ANL, GNF (Noise Filter) |
Dimensions | 11-1/8″W x 11-1/2″D x 4-1/4″H |
Weight | 10.7 pounds (Radio + Mic) |
|
1. MICROPHONE JACK |
2. MIC GAIN CONTROL |
3. ON/OFF VOLUME CONTROL |
4. SQUELCH CONTROL |
5. RF GAIN CONTROL |
|
6. SWR CAL CONTROL |
7. S-RF/CAL/SWR SWITCH |
8. TALKBACK CONTROL |
9. CHANNEL SELECTOR |
10. FRONT PANEL METER |
|
11. TX/RX LED |
12. FREQUENCY COUNTER |
13. DIM/BRT SWITCH |
14. COUNTER OFF |
15. PA/CB SWITCH |
|
16. NB/ANL SWITCH |
17. ROGER BEEP SWITCH |
18. CH19/NORMAL SWITCH |
19. CHANNEL DISPLAY |
|

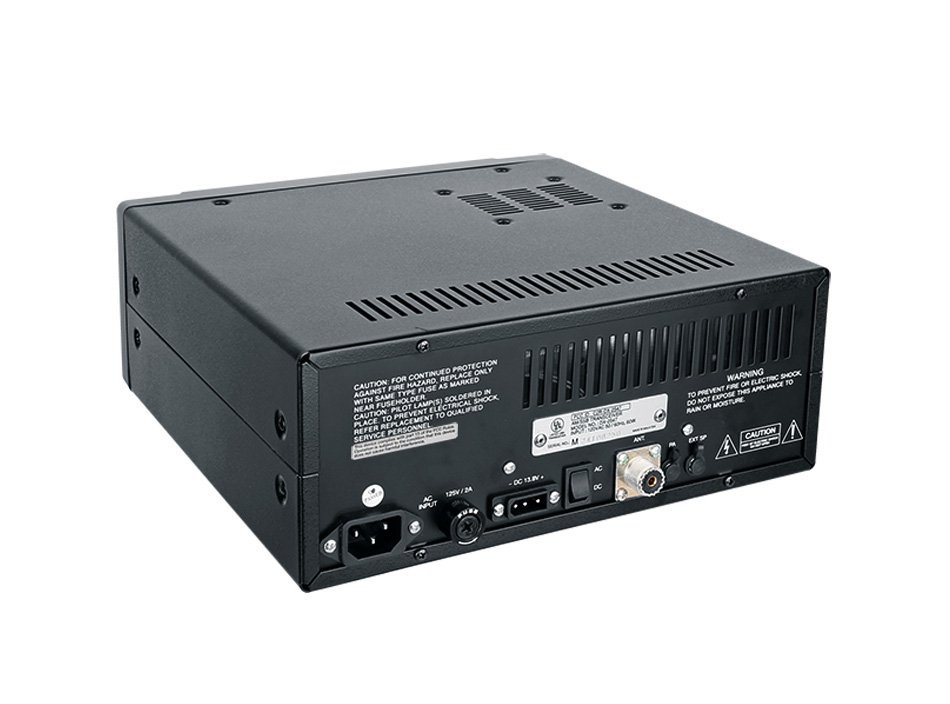

1. ANTENNA |
2. DC POWER |
3. PA SP |
4. EXT. SP |
Controls and Indicators
| 1. MICROPHONE JACK | 2. MIC GAIN CONTROL |
| 3. ON/OFF VOLUME CONTROL | 4. SQUELCH CONTROL |
| 5. RF GAIN CONTROL | 6. SWR CAL CONTROL |
| 7. S-RF/CAL/SWR SWITCH | 8. TALKBACK CONTROL |
| 9. CHANNEL SELECTOR | 10. FRONT PANEL METER |
| 11. TX/RX LED | 12. FREQUENCY COUNTER |
| 13. DIM/BRT SWITCH | 14. COUNTER OFF |
| 15. PA/CB SWITCH | 16. NB/ANL SWITCH |
| 17. ROGER BEEP SWITCH | 18. CH19/NORMAL SWITCH |
| 19. CHANNEL DISPLAY |
| 1. ANTENNA | 2. DC POWER |
| 3. PA SP | 4. EXT. SP |
