TRE-2659
- [Industrial Metal Chassis & 4-Scale Meter] Features a heavy-duty, metal-reinforced front panel engineered for commercial cabs. The large illuminated instrument displays S-Meter, Modulation %, Power Output, and SWR in real-time.
- [Multi-Mode Communication & Advanced Filtering] Supports full AM, USB, and LSB (SSB) modes for extended skip communications. Integrated with ANL/NB circuitry to isolate operators from heavy diesel engine chatter and atmospheric static.
- [Automatic SWR Hardware Protection] Equipped with continuous-monitoring Automatic SWR Circuitry and a front-panel LED alert light. Instantly detects antenna system mismatching to prevent final transistor damage during operation.
- [Dynamic Transmission Control Suite] Provides precision tactile adjustments for Mic Gain, RF Gain, Variable Power, and an independent Talkback circuit, allowing seamless calibration for diverse mobile and base environments.
- [Starlite Illuminated Face Plate] Features a Starlite fully-illuminated front panel with integrated dimmer controls, ensuring clear visibility and non-glare, 24/7 readability under pitch-black night driving or direct sunlight.
CB Radio >
TRE-2659
- Tactile Knobs, Instant Control
- GNF Noise Filter
- Built-in SWR Bridge
- SWR Alert LED
- Large S-Meter/Modulation/Power/SWR Meter
- Switchable NB/ANL
- Variable Dimmer
- 4 pin front panel mic jack
- Superior Signal Reception
- Variable Talkback
- Multi-Mode AM/USB/LSB
- Illuminated Faceplate
Product Details
Texas Ranger TRE-2659: Heavy-Duty AM/SSB CB Mobile Transceiver
The Texas Ranger TRE-2659 is a commercial-grade, multi-mode CB radio engineered specifically for professional long-haul truck drivers, fleet operators, and radio enthusiasts who require uncompromised chassis durability, SSB long-range capabilities, and precise analog monitoring.
Ruggedized Fleet Engineering Built to withstand the punishing environments of commercial transport, the TRE-2659 features an industrial metal-reinforced front panel that resists impacts and cabin vibrations. The oversized four-scale analog meter delivers instant diagnostic status of signal strength, modulation depth, RF output, and SWR at a single glance.
Multi-Mode & Advanced Acoustic Isolation Upgraded with SSB (USB/LSB) operating modes alongside standard AM, the TRE-2659 allows operators to punch through long-distance propagation. The integrated Automatic Noise Limiter (ANL) and Noise Blanker (NB) circuits aggressively suppress ambient diesel clatter and road hum, delivering crisp, highly intelligible voice reception.
Continuous Transmitter Safeguards Operational downtime is minimized via an integrated Automatic SWR monitoring system. The radio continuously checks antenna matching and activates a dedicated front-panel warning LED if a high SWR fault is detected, safeguarding internal circuitry from power reflections without requiring manual calibration.
Starlite Night Ergonomics for Safe Operation Designed for non-distracted driving, the TRE-2659 features a Starlite illuminated face plate with adjustable brightness, ensuring all controls remain clearly visible 24/7. Replaces complex digital menus with heavy-duty tactile knobs, variable power controls, and an adjustable Talkback circuit for real-time voice monitoring.
. What’s in the Box
- 1 x TRE-2659 Radio Transceiver
- 1 x Dynamic Microphone
- 1 x Mounting Bracket with Hardware
- 1 x Fused DC Power Cord
- 1 x Microphone Hanger with Hardware
- 1 x Instruction Manual
Specification
General:
|
Model: TRE-936FFB |
Channels: 40 |
Frequency Range: 26.965 ~ 27.405 MHz |
|
Emission: AM |
Frequency Control: Phase-Lock-loop (PLL) Synthesizer |
Frequency Stability: 0.00% |
|
Temperature Range: -30°C to +50°C |
Antenna Impedance: 50 Ohms |
Input Voltage: 13.8V DC |
|
Weight: 4.2 lbs |
Size: 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
|
Transmitter:
|
RF Power Output: 4W |
Spurious Emission: -60 dB |
Audio Distortion: 10% |
Microphone: Dynamic |
|
Frequency Response: 300 to 2500 Hz |
|||
Receiver:
|
Sensitivity for 10 dB (S+N)/N: < 1.0 uV |
Squelch Sensitivity: < 0.5 uV |
Image Rejection: More than 65 dB |
|
Audio Response: 300 to 2500 Hz |
Audio Power Output: 3W @ 10% Distortion |
AGC Figure of Merit: 100 mV for 10dB Change in Audio Output |
Specification
| General: | |
| Model | TRE-936FFB |
| Channels | 40 |
| Frequency Range | 26.965 ~ 27.405 MHz |
| Emission | AM |
| Frequency Control | Phase-Lock-loop (PLL) Synthesizer |
| Frequency Stability | 0.00% |
| Temperature Range | -30°C to +50°C |
| Antenna Impedance | 50 Ohms |
| Antenna Connectors | Standard SO-239 type |
| Input Voltage | 13.8V DC |
| Size | 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
| Weight | 4.2 lbs. |
TRANSMITTER: | |
| RF Power Output | 4W |
| Spurious Emission | -60 dB |
| Audio Distortion | 10% |
| Frequency Response | 300 to 2500 Hz |
| Microphone | Dynamic |
RECEIVER: | |
| Sensitivity for 10 dB (S+N)/N | < 1.0 uV |
| Squelch Sensitivity | < 0.5 uV |
| Image Rejection | More than 65 dB |
| AGC Figure of Merit | 100 mV for 10dB Change in Audio Output |
| Audio Power Output | 3W @ 10% Distortion |
| Audio Response | 300 to 2500 Hz |
Technical Specifications
Parameter / Feature | Specifications |
Operating Modes | AM, USB, LSB (SSB) (40 Channels) |
Chassis Construction | Metal-Reinforced Front Panel |
Faceplate Lighting | Starlite Illuminated Face Plate with Variable Dimmer Controls |
Metering Matrix | S-Meter, Modulation %, RF Power, SWR |
Noise & Filter Circuitry | ANL (Automatic Noise Limiter), NB (Noise Blanker) |
Audio & TX Controls | Variable Talkback, Variable Mic Gain, Variable RF Gain, Variable Power |
Antenna Protection | Automatic SWR Circuitry with Front-Panel Warning LED |
Frequency Readout | Integrated 5-Digit Frequency Counter |
|
1. MICROPHONE JACK |
2. MIC GAIN CONTROL |
3. ON/OFF VOLUME CONTROL |
4. SQUELCH CONTROL |
5. RF GAIN CONTROL |
|
6. SWR CAL CONTROL |
7. S-RF/CAL/SWR SWITCH |
8. TALKBACK CONTROL |
9. CHANNEL SELECTOR |
10. FRONT PANEL METER |
|
11. TX/RX LED |
12. FREQUENCY COUNTER |
13. DIM/BRT SWITCH |
14. COUNTER OFF |
15. PA/CB SWITCH |
|
16. NB/ANL SWITCH |
17. ROGER BEEP SWITCH |
18. CH19/NORMAL SWITCH |
19. CHANNEL DISPLAY |
|

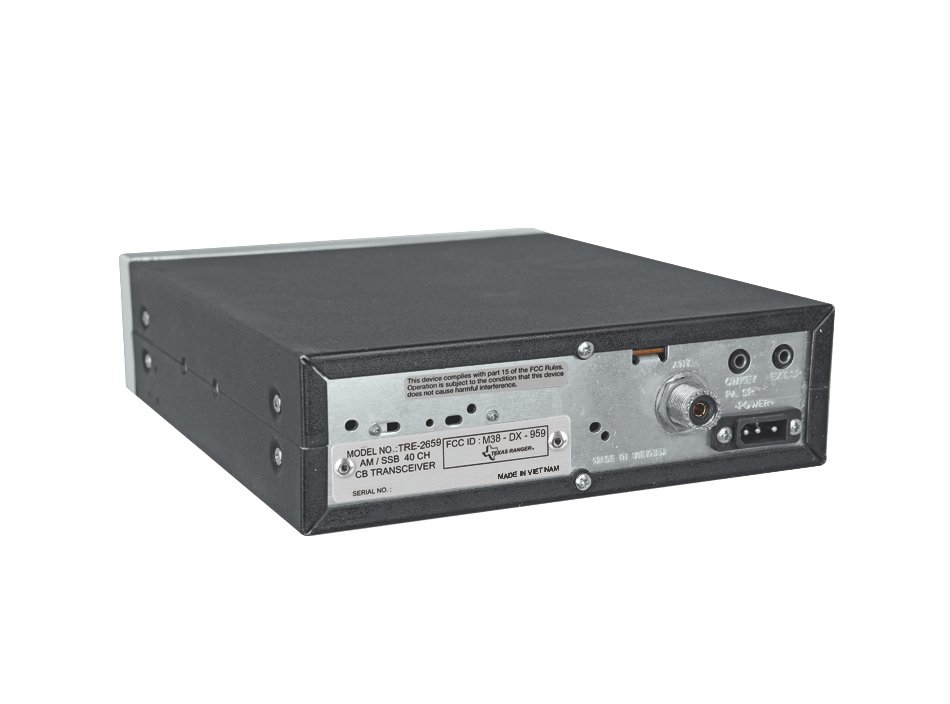

1. ANTENNA |
2. DC POWER |
3. PA SP |
4. EXT. SP |
Controls and Indicators
| 1. MICROPHONE JACK | 2. MIC GAIN CONTROL |
| 3. ON/OFF VOLUME CONTROL | 4. SQUELCH CONTROL |
| 5. RF GAIN CONTROL | 6. SWR CAL CONTROL |
| 7. S-RF/CAL/SWR SWITCH | 8. TALKBACK CONTROL |
| 9. CHANNEL SELECTOR | 10. FRONT PANEL METER |
| 11. TX/RX LED | 12. FREQUENCY COUNTER |
| 13. DIM/BRT SWITCH | 14. COUNTER OFF |
| 15. PA/CB SWITCH | 16. NB/ANL SWITCH |
| 17. ROGER BEEP SWITCH | 18. CH19/NORMAL SWITCH |
| 19. CHANNEL DISPLAY |
| 1. ANTENNA | 2. DC POWER |
| 3. PA SP | 4. EXT. SP |
