CB Radio >
TRE-2679
- 【AM/SSB MULTI-MODE PERFORMANCE】 Experience the full range of the 11-meter band with 40 channels of AM and Single Sideband (SSB) capability. SSB allows for significantly increased range and clearer long-distance “skip” communication compared to standard AM-only radios.
- 【SRA-198NC NOISE CANCELING MIC】 Comes standard with the legendary SRA-198NC Dynamic Noise Canceling Microphone. Designed to silence heavy engine roar and ambient road noise, ensuring your voice remains the star of every transmission.
- 【COMPACT TRUCKER-FRIENDLY DESIGN】 Engineered with a space-saving footprint to fit perfectly into modern truck cubbyholes, overhead consoles, and tight dashboard slots without sacrificing the rugged feel of a professional rig.
- 【BUILT-IN SWR BRIDGE】 Protect your investment with the integrated SWR Bridge. Easily monitor your antenna system’s health directly from the radio, ensuring peak performance and preventing damage to your internal power amplifier.
- 【TACTILE “OLD SCHOOL” CONTROLS】 No menus, no fuss. Features high-torque, tactile knobs for Variable Talkback, Dimmer Control, and RF Gain. Get instant, precise adjustments that you can feel, even while keeping your eyes on the road.
- 【CRYSTAL CLEAR RECEPTION】 Equipped with a bright Digital Frequency Counter for easy reading and NB/ANL (Noise Blanker / Automatic Noise Limiter) circuitry to effectively filter out ignition static and electromagnetic interference.
CB Radio >
TRE-2679
- Tactile Knobs, Instant Control
- AM/SSB Multi-Mode
- Built-in SWR Bridge
- SWR Alert LED
- Large S-Meter/Modulation/Power/SWR Meter
- Switchable NB/ANL
- Variable Dimmer
- 4 pin front panel mic jack
- Superior Signal Reception
- Variable Talkback
- SRA-198NC Noise Canceling Mic
- Compact Size
Product Details
Texas Ranger TRE-2679: Classic Soul, Compact Footprint
The Texas Ranger TRE-2679 is designed for the professional driver who misses the tactile feel of vintage radios but operates in a modern, space-limited cabin. It brings the power of AM and SSB (Single Sideband) into a compact chassis, making it the most versatile tool in your communication arsenal.
Professional Power Meets Precision
The TRE-2679 doesn’t just talk; it communicates with authority. With the front-mounted microphone jack, installation is clean and flush against your dash. The inclusion of the SRA-198NC Dynamic Mic means your 40-channel transmissions will cut through the static with professional-grade modulation.
Monitoring & Protection
Keeping your antenna tuned is critical. The built-in SWR Bridge allows you to check your Standing Wave Ratio at any time, ensuring your signal is getting out and your radio is staying cool. Paired with a Variable Dimmer, you can adjust the display to perfectly match your cab’s lighting, from high-noon clarity to soft midnight glows.
Tactical Control
We’ve kept the controls “Old School” for a reason. In a world of touchscreens, the TRE-2679 offers the reliability of physical knobs. Adjust your Talkback (to hear your own voice) or your NB/ANL filters instantly. It’s the radio you know, in a size that fits where you need it.

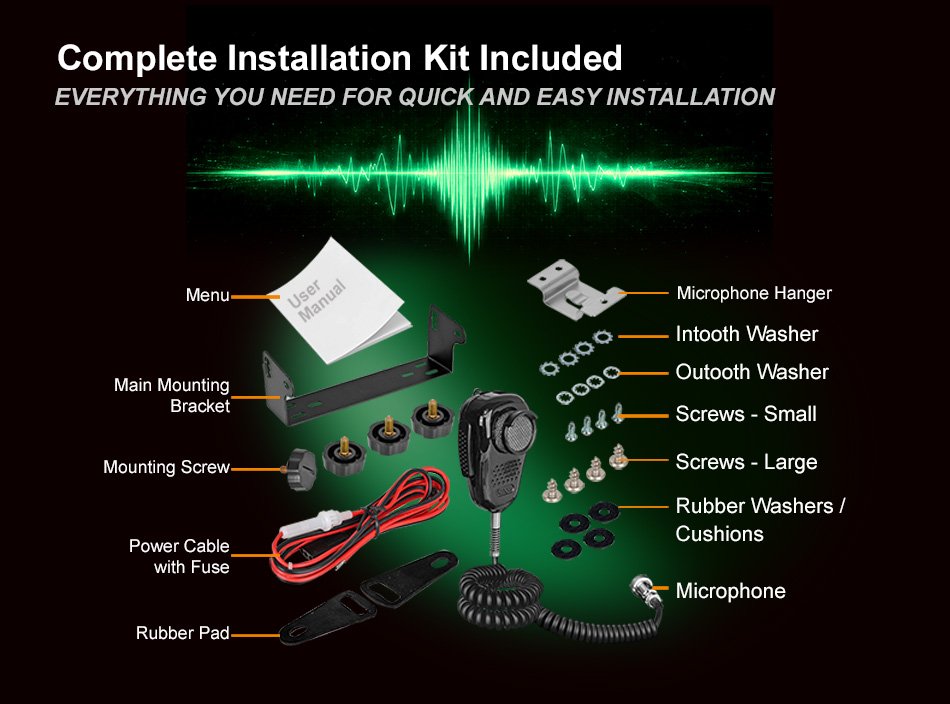

What’s in the Box
- 1 x TRE-2679 Radio Transceiver
- 1 x SRA-198NC Noise Canceling Microphone
- 1 x Mounting Bracket with Hardware
- 1 x Fused DC Power Cord
- 1 x Microphone Hanger with Hardware
- 1 x Instruction Manual
Specification
General:
|
Model: TRE-936FFB |
Channels: 40 |
Frequency Range: 26.965 ~ 27.405 MHz |
|
Emission: AM |
Frequency Control: Phase-Lock-loop (PLL) Synthesizer |
Frequency Stability: 0.00% |
|
Temperature Range: -30°C to +50°C |
Antenna Impedance: 50 Ohms |
Input Voltage: 13.8V DC |
|
Weight: 4.2 lbs |
Size: 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
|
Transmitter:
|
RF Power Output: 4W |
Spurious Emission: -60 dB |
Audio Distortion: 10% |
Microphone: Dynamic |
|
Frequency Response: 300 to 2500 Hz |
|||
Receiver:
|
Sensitivity for 10 dB (S+N)/N: < 1.0 uV |
Squelch Sensitivity: < 0.5 uV |
Image Rejection: More than 65 dB |
|
Audio Response: 300 to 2500 Hz |
Audio Power Output: 3W @ 10% Distortion |
AGC Figure of Merit: 100 mV for 10dB Change in Audio Output |
Specification
| General: | |
| Model | TRE-936FFB |
| Channels | 40 |
| Frequency Range | 26.965 ~ 27.405 MHz |
| Emission | AM |
| Frequency Control | Phase-Lock-loop (PLL) Synthesizer |
| Frequency Stability | 0.00% |
| Temperature Range | -30°C to +50°C |
| Antenna Impedance | 50 Ohms |
| Antenna Connectors | Standard SO-239 type |
| Input Voltage | 13.8V DC |
| Size | 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H) |
| Weight | 4.2 lbs. |
TRANSMITTER: | |
| RF Power Output | 4W |
| Spurious Emission | -60 dB |
| Audio Distortion | 10% |
| Frequency Response | 300 to 2500 Hz |
| Microphone | Dynamic |
RECEIVER: | |
| Sensitivity for 10 dB (S+N)/N | < 1.0 uV |
| Squelch Sensitivity | < 0.5 uV |
| Image Rejection | More than 65 dB |
| AGC Figure of Merit | 100 mV for 10dB Change in Audio Output |
| Audio Power Output | 3W @ 10% Distortion |
| Audio Response | 300 to 2500 Hz |
Technical Specifications
Feature | Specification |
Model | Texas Ranger TRE-2679 |
Channels | 40 Channel AM / SSB (USB/LSB) |
Microphone | SRA-198NC Dynamic Noise Canceling |
Mounting | Compact Trucker Design (Front Mic Jack) |
SWR System | Built-in SWR Bridge for Antenna Tuning |
Visuals | Digital Frequency Counter + Analog S/RF Meter |
Audio Controls | Variable Talkback, RF Gain, Mic Gain |
Filters | NB (Noise Blanker) / ANL |
Display | Variable Dimmer Control |
|
1. MICROPHONE JACK |
2. MIC GAIN CONTROL |
3. ON/OFF VOLUME CONTROL |
4. SQUELCH CONTROL |
5. RF GAIN CONTROL |
|
6. SWR CAL CONTROL |
7. S-RF/CAL/SWR SWITCH |
8. TALKBACK CONTROL |
9. CHANNEL SELECTOR |
10. FRONT PANEL METER |
|
11. TX/RX LED |
12. FREQUENCY COUNTER |
13. DIM/BRT SWITCH |
14. COUNTER OFF |
15. PA/CB SWITCH |
|
16. NB/ANL SWITCH |
17. ROGER BEEP SWITCH |
18. CH19/NORMAL SWITCH |
19. CHANNEL DISPLAY |
|

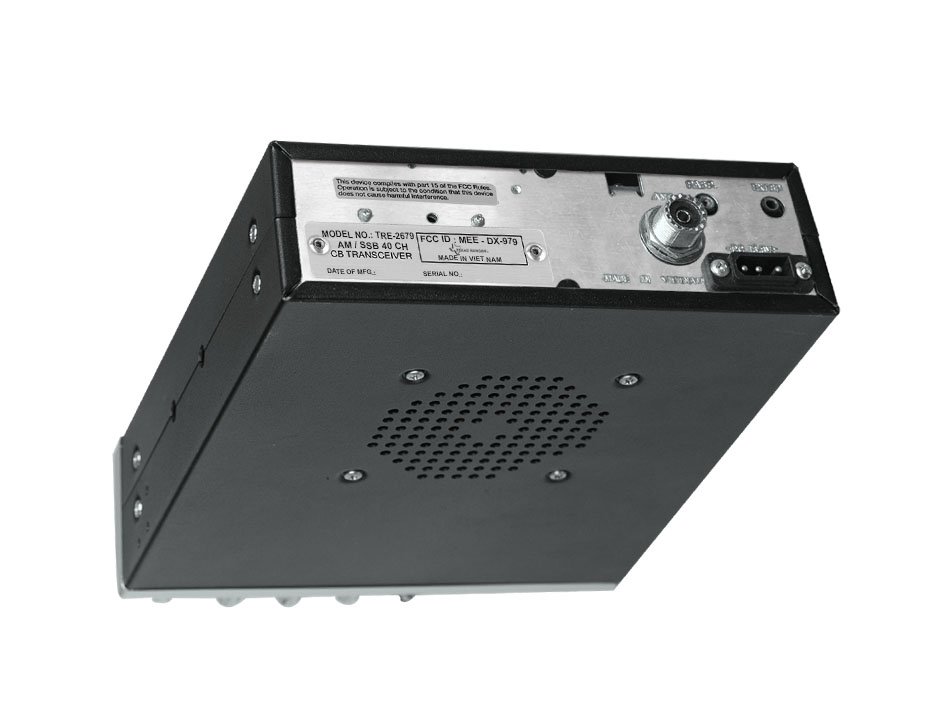

1. ANTENNA |
2. DC POWER |
3. PA SP |
4. EXT. SP |
Controls and Indicators
| 1. MICROPHONE JACK | 2. MIC GAIN CONTROL |
| 3. ON/OFF VOLUME CONTROL | 4. SQUELCH CONTROL |
| 5. RF GAIN CONTROL | 6. SWR CAL CONTROL |
| 7. S-RF/CAL/SWR SWITCH | 8. TALKBACK CONTROL |
| 9. CHANNEL SELECTOR | 10. FRONT PANEL METER |
| 11. TX/RX LED | 12. FREQUENCY COUNTER |
| 13. DIM/BRT SWITCH | 14. COUNTER OFF |
| 15. PA/CB SWITCH | 16. NB/ANL SWITCH |
| 17. ROGER BEEP SWITCH | 18. CH19/NORMAL SWITCH |
| 19. CHANNEL DISPLAY |
| 1. ANTENNA | 2. DC POWER |
| 3. PA SP | 4. EXT. SP |
